GX8301B Development Board*

This development board is a general-purpose development platform for the GX8301B reference design, suitable for developers to conduct hardware design and software development for Bluetooth keyboards and mice, smart home appliances, IoT devices with displays, and wireless audio devices. The documentation provides download links for the hardware specifications and hardware design resources of the development board.

1. GX8301B Hardware Development Board Physical Image*

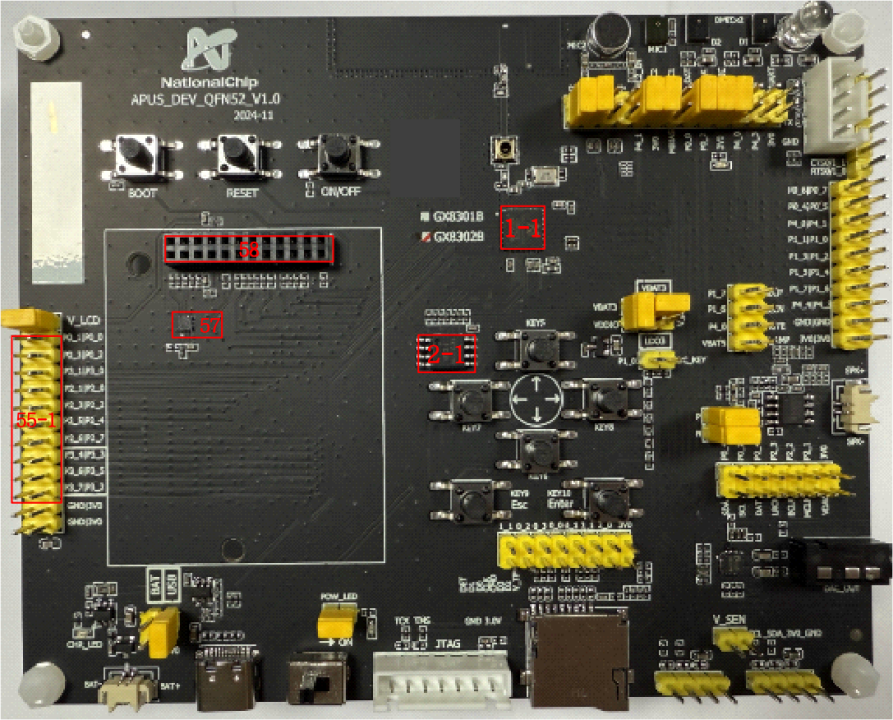

  • GX8301B Hardware Development Board Physical Image - Front View

GX8301B Development Board Physical Image

GX8301B Development Board Physical Image
  • 1-1, GX8301B: Low-power BLE IoT chip
  • 2-1, NC when using the GX8301B solution
  • 55-1, Reserved IO interface, all IOs available; P3_2-P3_7 require mounting the series resistors on the back side
  • 57, LCD backlight driver chip: AW9364DNR
  • 58, LCD screen interface, 2.0mm

2. GX8301B Development Board Hardware Design Resources*
