GX8005_GF_Module Gold Finger Module*

The GX8005_GF_Module solution is an AI voice module designed based on the NationalChip GX8005 platform. This module integrates a power interface, UART interface, microphone interface, power amplifier module, speaker interface, etc., on board. It supports gold finger plug-in installation and stamp hole SMD mounting, featuring low cost and high performance. The document provides download links for the module's user manual and hardware design resources.

1. GX8005_GF_Module Gold Finger Module Block Diagram*

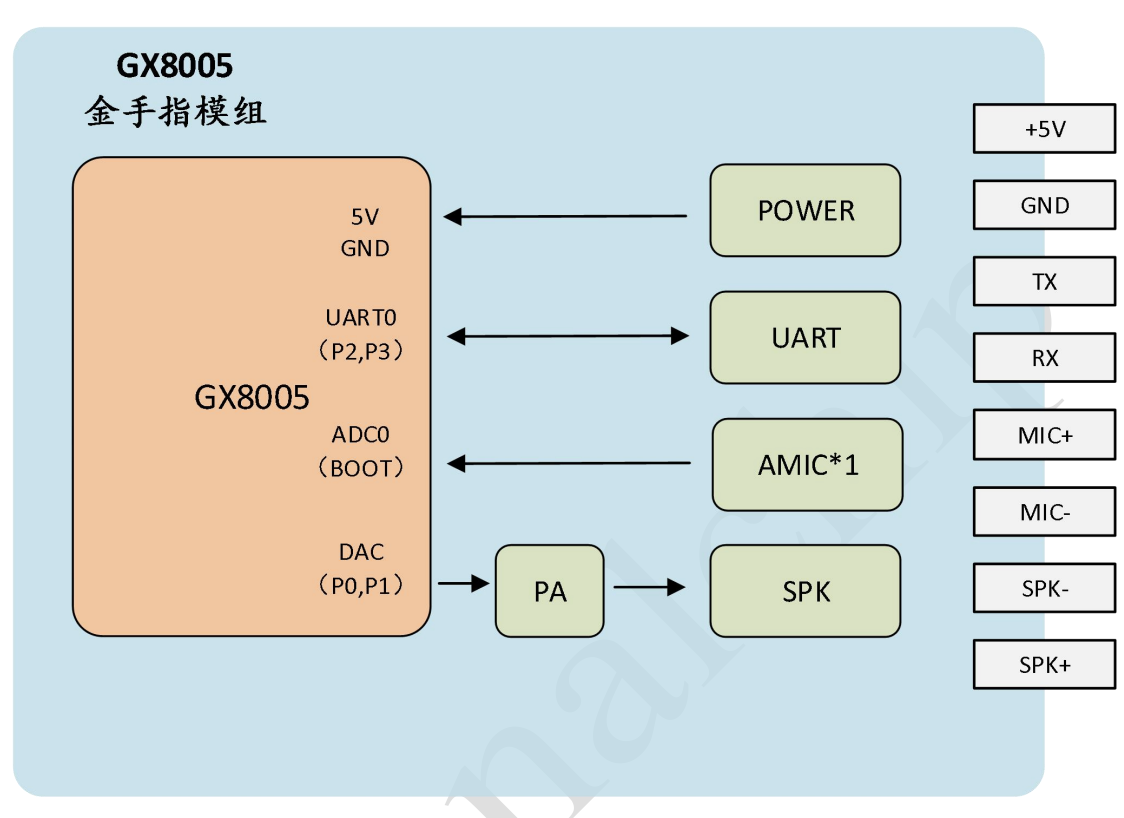

1.1 GX8005_GF_Module Gold Finger Module Block Diagram*

GX8005_GF_Module Gold Finger Module Block Diagram

GX8005_GF_Module Gold Finger Module Block Diagram

2. GX8005_GF_Module Gold Finger Module Design Resources:*
