GX8301A Bluetooth Voice Remote Control Solution*

This development board is a development platform for the GX8301A Bluetooth voice remote control solution, suitable for developers to conduct Bluetooth voice remote control solution hardware design and software development. The document provides download links for the development board's hardware specification and hardware design documentation.

1. GX8301A Bluetooth Voice Remote Control Solution Block Diagram*

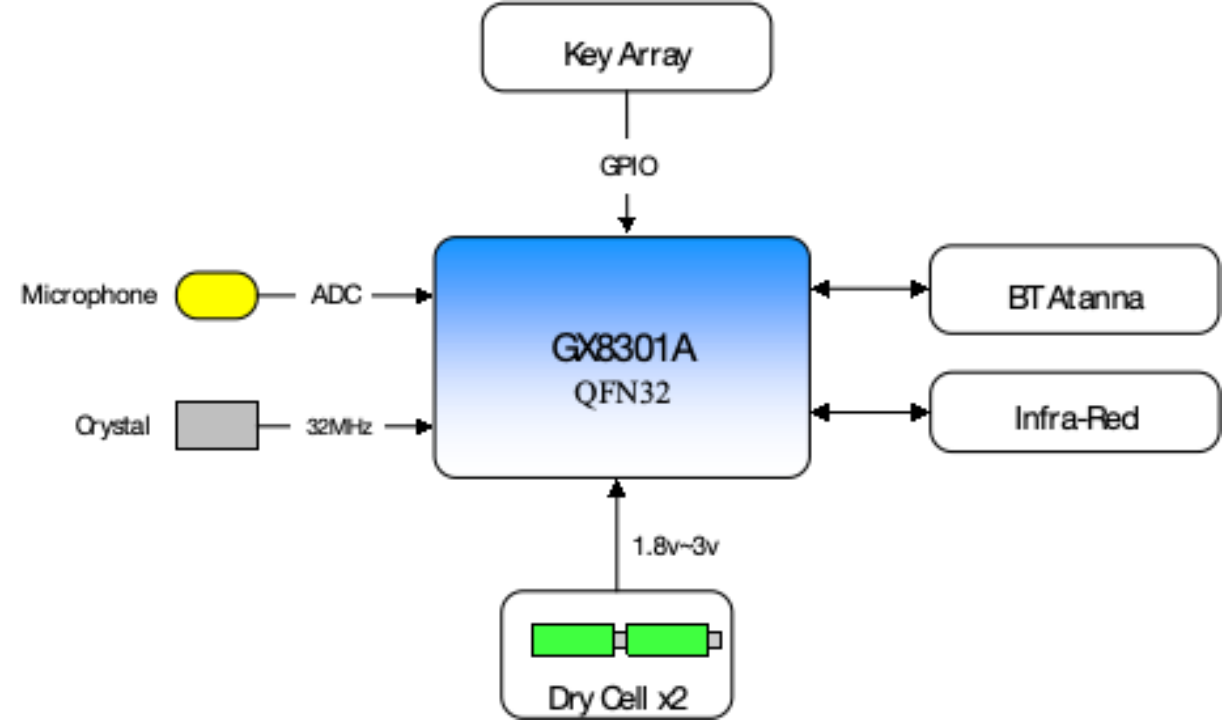

GX8301A Bluetooth Voice Remote Control Solution Block Diagram

GX8301A Bluetooth Voice Remote Control Solution Block Diagram

2. GX8301B Hardware Development Board Physical Diagram*

  • GX8301B Hardware Development Board Physical Diagram

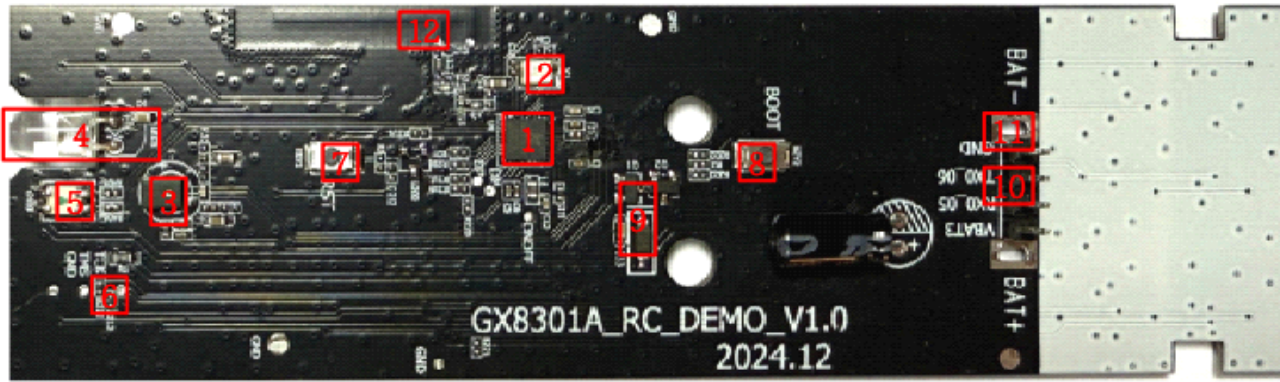

GX8301A Bluetooth Voice Remote Control Solution Physical Diagram - Front

GX8301A Bluetooth Voice Remote Control Solution Physical Diagram - Front

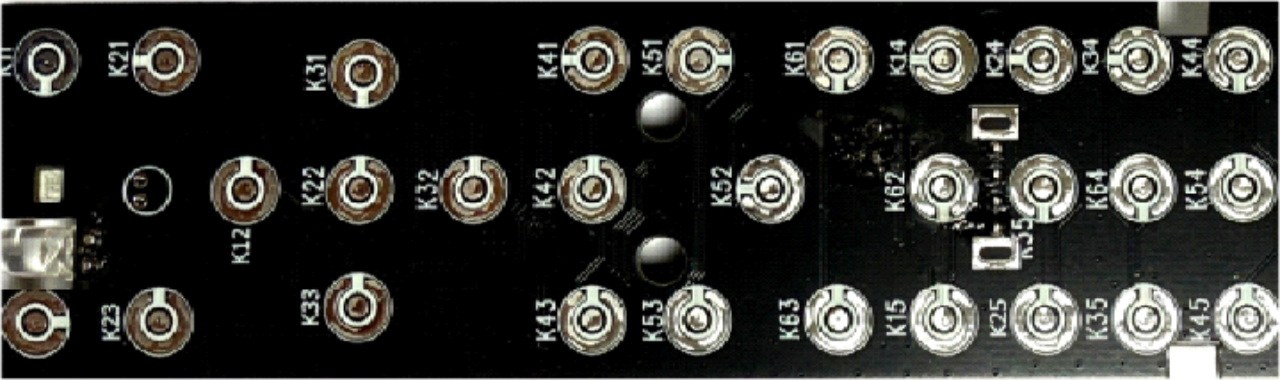

GX8301A Bluetooth Voice Remote Control Solution Physical Diagram - Back

GX8301A Bluetooth Voice Remote Control Solution Physical Diagram - Back
    1. GX8301A: Low-power BLE IoT chip
    1. Crystal oscillator: 32MHz, 10pF, ±10ppm
    1. AMIC: MEMS microphone, 3729, top pickup (compatible with ECM electret microphone)
    1. Infrared emitting diode: λp=940nm, diameter 5mm
    1. Light-emitting diode, red-green dual color
    1. Test point: JTAG interface
    1. Button: BOOT button
    1. Button: RESET button
    1. VBAT3 fast discharge circuit
    1. Interface: UART and DC power supply interface
    1. Interface: Dry battery interface
    1. RF onboard antenna

3. GX8301A Bluetooth Voice Remote Control Solution Hardware Design Documentation*
