GX8006_WIFI Voice AI Large Model Solution*

This development board is the GX8006_WIFI Voice AI Large Model development platform, suitable for developers to conduct hardware design and software development for WIFI Voice AI Large Model product forms. The document provides download links for the development board's hardware specifications and hardware design materials.

1. GX8006_WIFI Large Model Solution Physical Diagram*

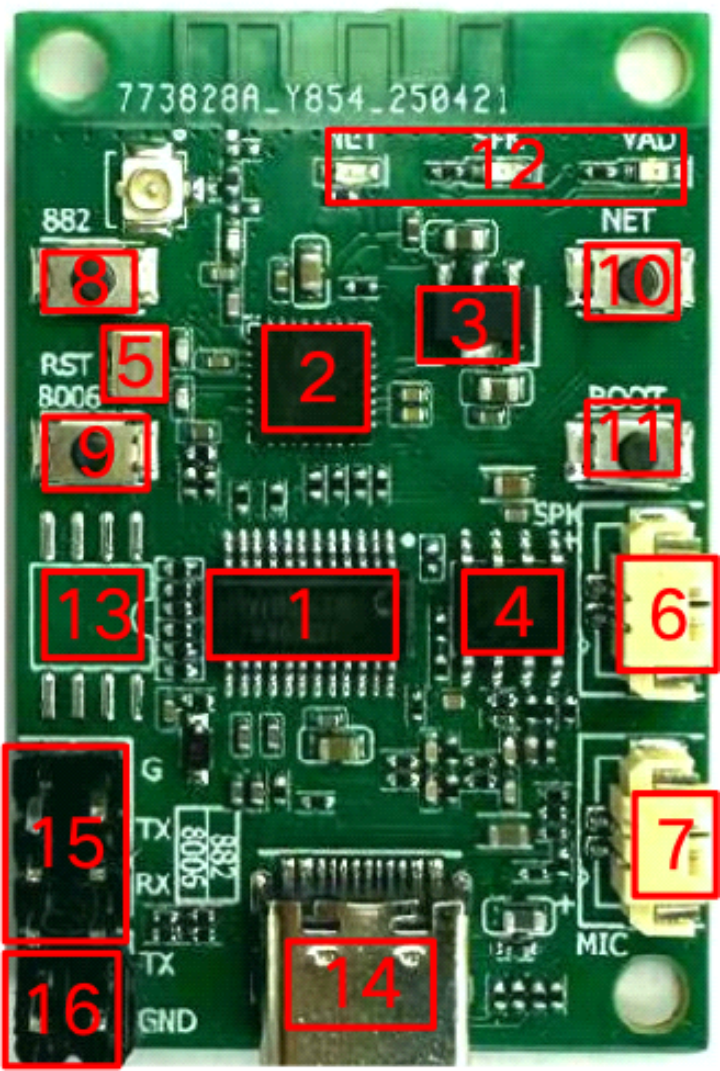

  • GX8006_WIFI Large Model Solution Physical Diagram

GX8006_WIFI Large Model Development Board Physical Diagram

GX8006_WIFI Large Model Development Board Physical Diagram
    1. GX8006A: Voice AI chip
    1. LN882H: WIFI chip
    1. LDO: Outputs 3.3V, used by LN882H
    1. CLASS AB amplifier, differential input
    1. Crystal oscillator: 40MHz ±10ppm
    1. Speaker interface, supports 4R3W/8R3W speakers
    1. Microphone interface, supports ECM analog microphones
    1. Button 1: LN882 reset button
    1. Button 2: GX8006 reset button
    1. Button 3: Network configuration button, or function button
    1. Button 4: LN882/GX8006 BOOT button, or function button
    1. LED: Function configurable
    1. Reserved position: Expandable PSRAM
    1. USB TypeC interface, powers the module, supports 5V
    1. Programming serial ports: Programming serial ports for GX8006 and LN882H respectively
    1. Debug serial ports: Debug serial ports for GX8006 and LN882H respectively

2. GX8006_WIFI Large Model Solution Hardware Design Materials*
