GX8008C_Wukong_Prime_v1.5 Board Guide*

Hardware*

Software*

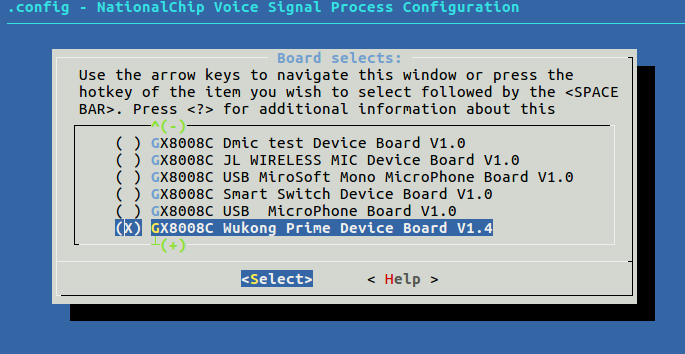

  • GX8008C_Wukong_Prime_v1.5 and gx8008c_wukong_prime_v1-4 fully compatible, software can choose 1.4. Choose Board

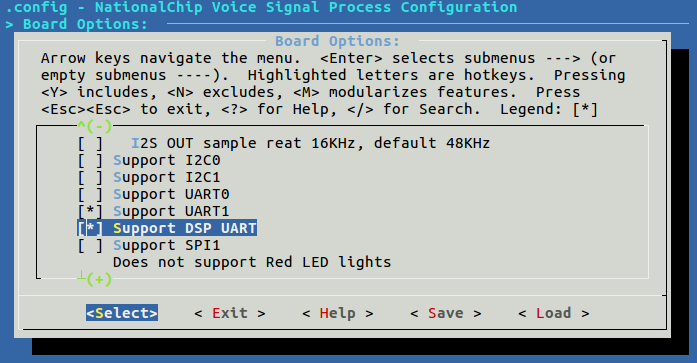

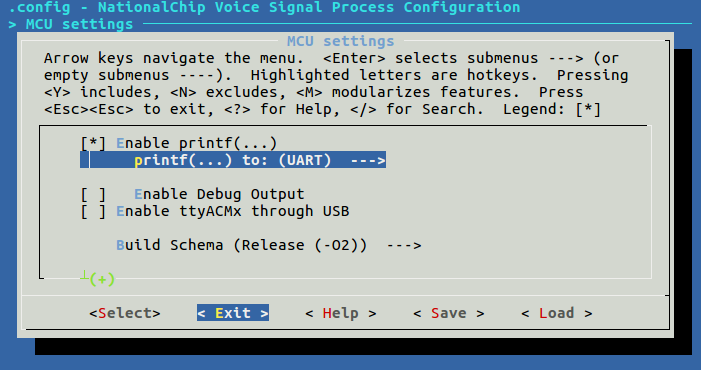

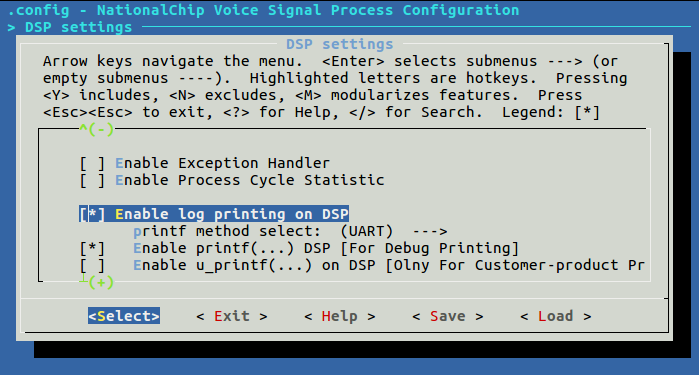

  • You can enable the UART LOG by turning on the following options in make menuconfig Pin multiplexing to enable UART of MCU and DSP Enable MCU UART log Enable DSP UART log

  • You can use the reference configuration in the following path to try compiling and burning

    configs/nationalchip_public_version/8008c_wukong_prime_codec_output0+1_demo.config
    When connecting to a pc through serial port, you can use serial port tool (115200 8N1) to receive the following MCU logs from MCU UART 1 respectively :
    Voice Signal Preprocess
Copyright (C) 2001-2019 NationalChip Co., Ltd
ALL RIGHTS RESERVED!
Hello MCU!
MCU <-> DSP Message Version: [20180517]
Board Model:[leo_mini_gx8008c_wukong_prime_1v]
MCU Version:[v1.3.0-rc1-77-gc5f48bb]
Build Date: [2023-04-25, 19:51:09]
CHIP NAME:  [8008C-NNNB]
PUBLIC ID:  [0d7416000000007e]
[UAC]Init UAC mode
Flash JEDEC = 0xef4016, model = w25q32.
[VPA] dsp_header.magic = 50534456
[VPA] dsp_header.message_version = 20180517
[VPA] dsp_header.xip_size = 0
[VPA] dsp_header.ptcm_size = 65536
[VPA] dsp_header.dtcm_size = 65536
[VPA] dsp_header.sram_size = 45928
[VPA] dsp_header.sram_base = 80000
pos [0] 0/0
[UAC]Init UAC mode done with 315 ms
    And received the following DSP log from DSP UART:
    Voice Signal Preprocess
Copyright (C) 2001-2018 NationalChip Co., Ltd
ALL RIGHTS RESERVED!
Hello DSP! [Mcu<->Dsp MsgVer: 20180517]
DSP Version [v1.3.0-rc1-77-gc5f48bb]
Build Time  [2023-04-25, 19:50:52]
PUBLIC ID: 0D741600 0000007E
[MAIN]VMT_MD_HELLO
