Upstream 4mic+2ref data via UAC48K dual-channel*

  • For the UAC 48K dual-channel solution, this topic describes how to provide uac upstream channel data
  • The 16K sampling rate 4mic+2ref has a total of 6 channels, and the data volume is just aligned with the 48K dual channels

vsp Compile configuration*

  • The current version of the gitlab vsp_sdk supports this solution

    $ git log
commit 434331edcd92f95dcf0a973e4f490630c8420ebf
Author: jialp <jialp@nationalchip.com>
Date:   Mon Jun 12 17:07:14 2023 +0800

    20230612: 新增vsp_hook_voice_play_demo

commit 7745a60e7cf61738c161d4b7722010a7861d7781
Author: jialp <jialp@nationalchip.com>
Date:   Fri Jun 9 17:33:09 2023 +0800

  • Note that the following compilation configuration is modified in make menuconfig

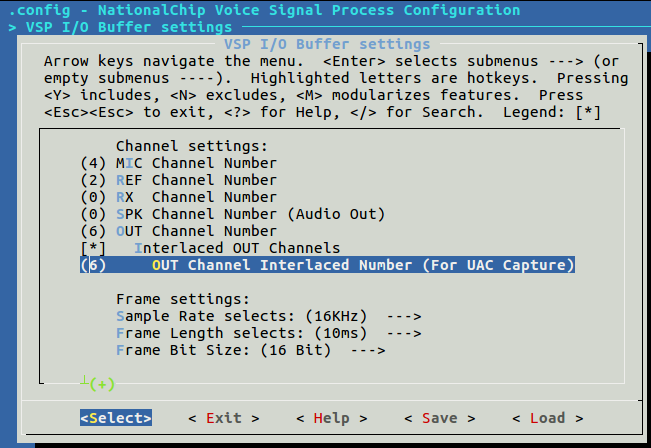

    • Configure six UAC upstream channels 配置6路UAC上行通道

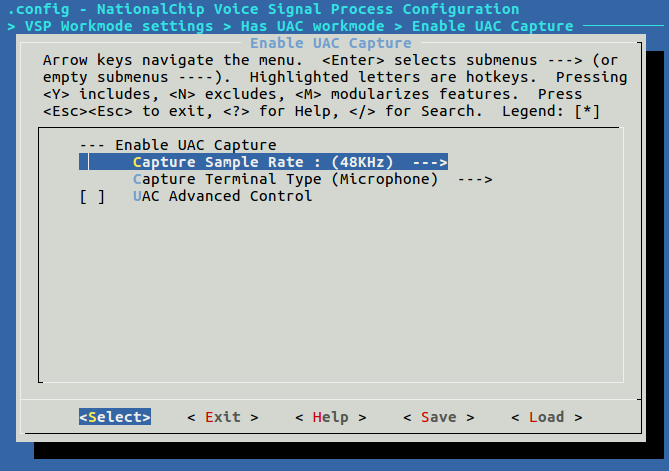

    • UAC capture Select 48KH UACcapture选择48KHz

  • Configure other configurations as required. See the configuration file in

    configs/nationalchip_public_version/8008c_wukong_prime_uac48k_up_4mic2ref.config

PC recording*

  • When connected to a PC, it is identified as a UAC device

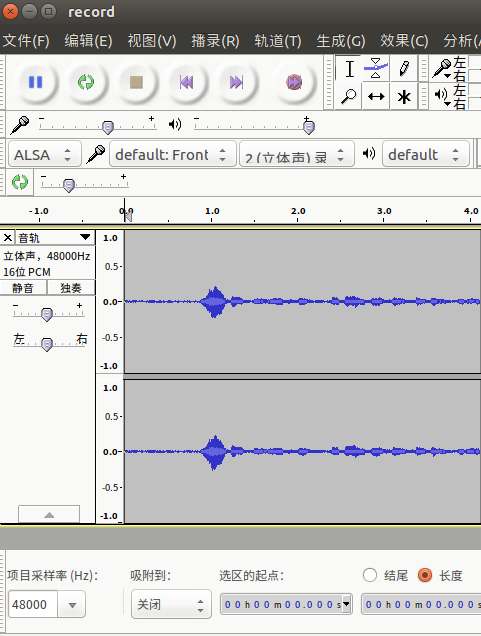

  • A PC can record 2 channels of 48K audio using Audacity PC录制2路48K

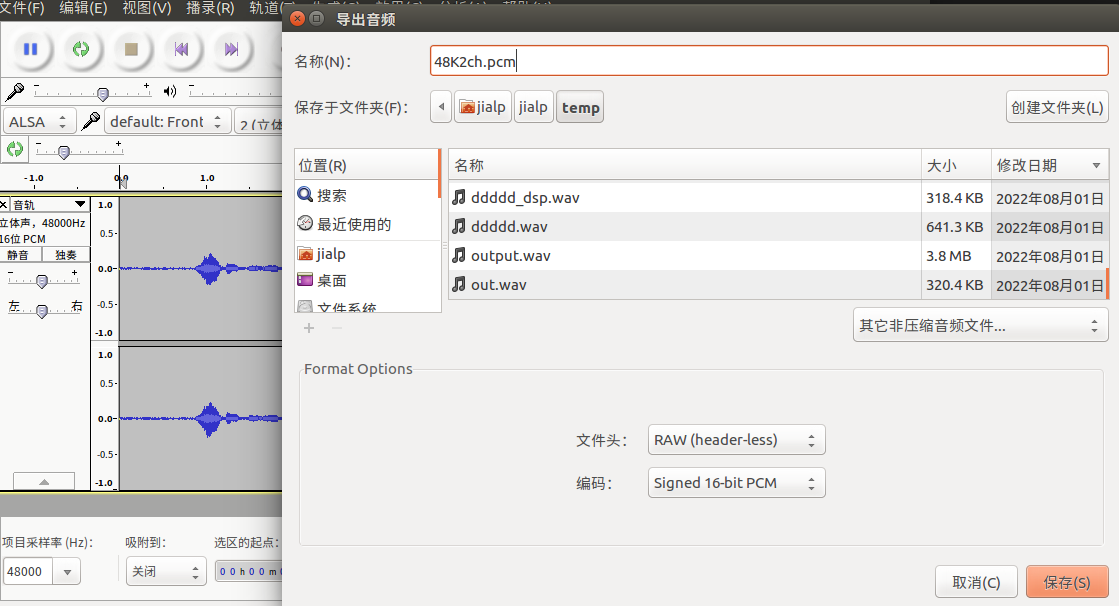

  • Export as a headless WAV file 导出为无头WAV

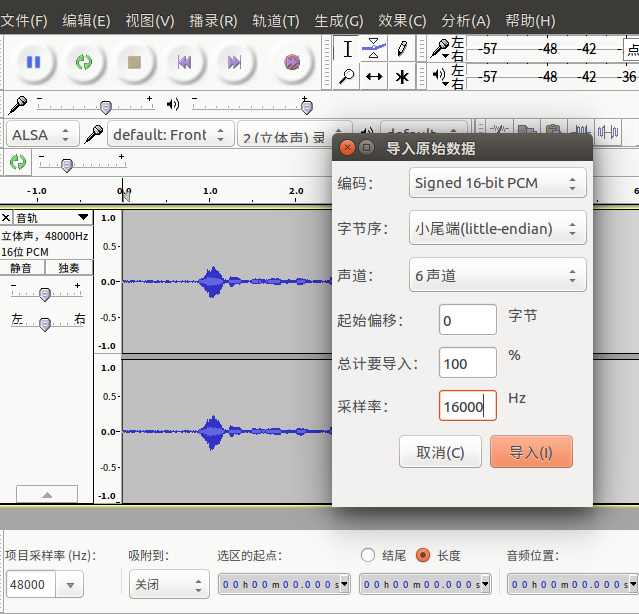

  • Import as raw data 作为原始数据导入

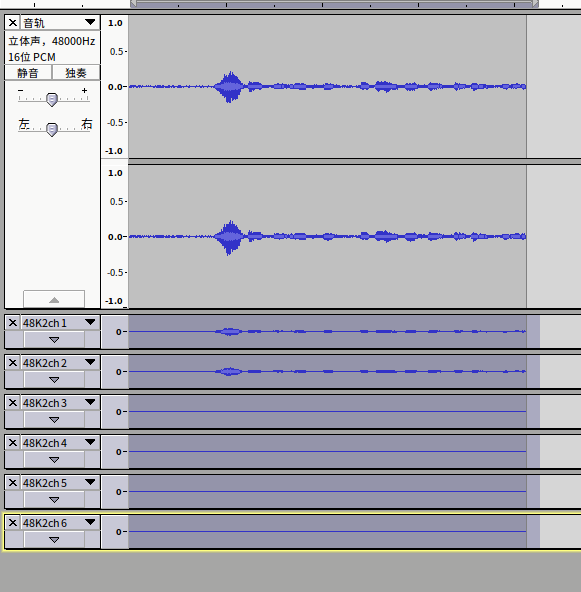

  • After exporting, a total of 6 channels of mic4ref2 data can be obtained 导入成功，再导出为6通道wav即可

注意

Note the parameters of each step during recording, importing, and exporting.
