OTA_SDK Usage Guide and Porting Guide*

1. Overview*

This document describes how to integrate the OTA_SDK into the host computer and perform OTA upgrades on the GX8002, GX8008(C), GX8009/GX8010 and other chip series.
This document mainly explains the OTA_SDK code, core code description of the upgrade process, and download instructions.

Important Information

The OTA upgrade described in this document supports firmware upgrade on blank chips, which means that OTA can be used to upgrade chips with or without existing firmware.

2. Obtaining the Code*

The OTA_SDK is hosted on a private GitLab repository. Please read the Register GitLab Account guide and provide your GitLab account to our sales manager. Our project manager will then grant access to the code for your account.

2.1 Downloading the Code*

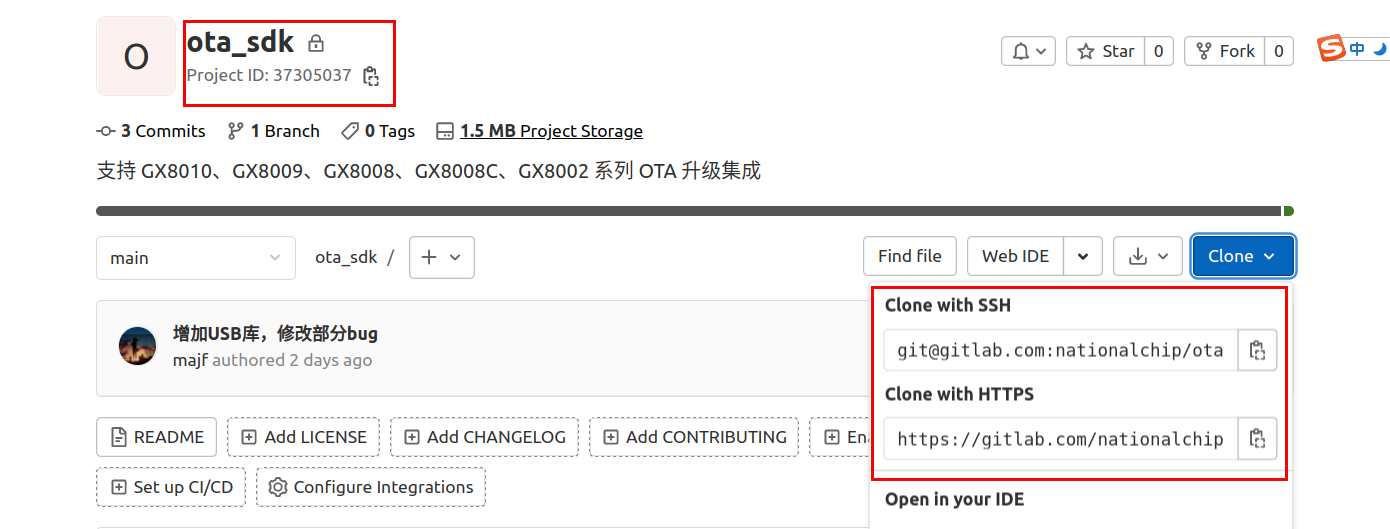

Go to the GitLab project and find the uart_bootx_example project. Copy the git address of the project as shown in the figure.
Clone the code to your local machine:

$ git clone git@gitlab.com:nationalchip/ota_sdk.git

3. OTA SDK Architecture Overview*

Overview of various chips:

Leo     : Including 8008/8009/8010, supports USB/UART transmission
Leo mini: Including 8008c/8008b, supports USB/UART transmission
Grus    : Including 8002, supports UART/I2C transmission

Project structure:

.
├── README.txt                         Help documentation
├── Makefile                           Compilation script
├── main.c                             Main program entry
├── main.md
├── bootfile                           Bootfile storage location, no need to modify during porting
│ ├── grus-i2c.boot                    Boot file for grus I2C download
│ ├── grus-uart.boot                   Boot file for grus UART download
│ ├── leo_mini-uart.boot               Boot file for leo mini UART download
│ ├── leo_mini-usb.boot                Boot file for leo mini USB download
│ └── leo-uart.boot                    Boot file for leo UART download
├── common                             Common libraries, no need to modify during porting
│ ├── crc.c
│ └── misc.c
├── include                            Common header files, no need to modify during porting
│ ├── i2c.h
│ ├── misc.h
│ ├── porting.h
│ ├── uart.h
│ └── usb.h
├── porting                            When porting to other platforms, implement corresponding porting APIs for the transmission method
│ ├── porting_common.c                 Porting of PC-side common interfaces, needs to be implemented during porting
│ ├── porting_i2c.c                    I2C API, needs to be implemented during porting
│ ├── porting_i2c.h                    I2C header file, no need to modify during porting
│ ├── porting_uart.c                   Uart API, needs to be implemented during porting
│ ├── porting_uart.h                   Uart header file, no need to modify during porting
│ ├── porting_usb.c                    USB API, needs to be implemented during porting
│ ├── porting_usb.h                    USB header file, no need to modify during porting
│ └── usb2i2c                          PC-side USB to I2C operation library, only used for PC-side demo, no need to be concerned during porting
│     ├── ch34x_lib.c
│     ├── ch34x_lib.h
│     └── Linux_driver                 USB to I2C device Linux driver
│         ├── ch34x_pis.c
│         └── Makefile
├── i2c                                I2C download protocol, no need to modify during porting
│ ├── i2c.c                            I2C download protocol code, no need to modify
├── uart                               UART download protocol, no need to modify during porting
│ ├── uart.c                           UART download protocol code, no need to modify
└── usb                                USB download protocol, no need to modify during porting
  ├── usb.c                            USB download protocol code, no need to modify

4. OTA UART Upgrade Instructions and Porting Steps*

4.1 Analysis of `porting_uart.c`*

The porting_uart.c file contains API functions for UART initialization, configuration, data reading, and writing. Below is an explanation of the API functions:

API Interface	API Description
int32_t nc_uart_init(void);	* nc_uart_init: UART initialization * return: Returns 0 for successful configuration, negative value for configuration failure
int32_t nc_uart_done(void);	* nc_uart_done: Release UART resources * return: Returns 0 for successful configuration, negative value for configuration failure
int32_t nc_uart_config(int32_t baudrate, int32_t databits, int32_t stopbits, int32_t parity);	* nc_uart_config: Configure UART baud rate and other information * @baudrate: Baud rate * @databits: Data bits * @stopbits: Stop bits * @parity: Parity * return: Returns 0 for successful configuration, negative value for configuration failure
int32_t nc_uart_read(uint8_t *buf, int32_t len);	* nc_uart_read: Blocking receive UART data * @buf: Buffer for receiving UART data * @len: Expected length of received data * return: Returns the actual length of data received from UART, negative value in case of an error
int32_t nc_uart_try_read(uint8_t *buf, int32_t len);	* nc_uart_try_read: Attempt to read data from UART (returns immediately) * @buf: Buffer for receiving UART data * @len: Expected length of received data * return: Returns the actual length of data received from UART, negative value in case of an error
int32_t nc_uart_read_nonblock(uint8_t *buf, int32_t len, int32_t timeout_ms);	* nc_uart_read_nonblock: Read data from UART with a timeout * @buf: Buffer for receiving UART data * @len: Expected length of received data * @timeout_ms: Timeout setting * return: Returns the actual length of data received from UART, negative value in case of an error
int32_t nc_uart_write(const uint8_t *buf, int32_t len);	* nc_uart_write: Write data to UART * @buf: Buffer for sending UART data * @len: Length of data to be sent * return: Returns the actual length of data sent via UART, negative value in case of an error

4.2 UART Upgrade Process*

Download Boot Files:
- The boot file download is divided into two stages: stage1 and stage2.
Download Image Files:
- Download the image file to the specified address.

4.3 UART Upgrade Process Diagram*

It is recommended to right-click on the link and open it in a new window.

4.4 UART Upgrade Method*

Firmware Package Information Structure Explanation

typedef struct {
  uint32_t  addr;       // Flash address where the firmware package is burned
  uint8_t  *buff;       // Address of the firmware package data buffer
  uint32_t  buff_len;   // Length of the firmware package data
  uint32_t  crc;        // CRC checksum
} fw_t;

typedef struct {
    int32_t   fw_num;   // Number of firmware packages (grus has one firmware package, Leo/Leo_mini have one or two firmware packages)
    fw_t      fw[0];    // Firmware package information structure
} fw_info_t;

Note

When porting streaming download interfaces, you don't need to worry about the firmware buffer address in the info structure. You need to pass the flash address, firmware data length, and CRC checksum to the function, and the firmware data address is passed through the last two parameters to input the streaming firmware data and length. This part is different from non-streaming mode.

4.4.1 Non-Streaming UART Download Interface*

Non-streaming download: The entire boot file data packet and firmware package data exist on the host, and all data is passed to the download interface at once.

/**************************************
* Function: Non-streaming UART download boot
* boot: Boot file buffer address
* len: Length of boot file data
* return: 0 for success, -1 for failure
**************************************/
int uart_sendboot(uint8_t *boot, int len)

/**************************************
* Function: Non-streaming UART download firmware
* info: Firmware package information structure
* return: 0 for success, -1 for failure
**************************************/
int uart_download(fw_info_t *info)

4.4.2 Streaming UART Download Interface*

Streaming download: The boot file data and firmware package are not completely available on the host, but are sent chunk by chunk from other sources. At the beginning, the size of the entire firmware package and the flash address where the firmware is burned are needed.

/**************************************
* Function: Streaming UART download boot
* boot: Boot file buffer address passed in each time
* len: Length of boot data buffer to be burned each time
* return: 0 for success, -1 for failure
**************************************/
int uart_sendboot_streaming(uint8_t *boot, int len)

/**************************************
* Function: Streaming UART download firmware
* info: Firmware package information structure
* data: Buffer address for burning firmware data each time
* len: Length of firmware data buffer to be burned each time
* return: 0 for success, -1 for failure
**************************************/
int32_t uart_download_streaming(fw_info_t *info, uint8_t *data, uint32_t len)

4.5 UART Download Porting Steps*

Implement porting_uart.c.
Call the uart_sendboot or uart_sendboot_streaming interface to download the boot file.
Call the uart_download or uart_download_streaming interface to download the firmware.

5. I2C Upgrade Instructions and Porting Steps*

The main control chip/host communicates with the I2C address 0x36 by writing data and reading the specified register at address 0x2f to achieve the update interaction. It supports downloading firmware for empty chips.

5.1 Analysis of porting_i2c.c*

API Interface	API Description
int nc_i2c_init(void);	* nc_i2c_init : I2C initialization * return : Returns 0 on successful configuration, negative value on configuration failure
int nc_i2c_write(unsigned char address, unsigned char* buf, int buf_len);	* nc_i2c_write : I2C send data. If I2C writing fails, it is recommended to continue repeating the write for a certain number of times until it succeeds or times out. * @address: Slave address * @buf: Data buffer to be written * @buf_len: Length of data to be written * return : Returns a value greater than 0 on success, 0 on send failure
int nc_i2c_write_reg(unsigned char reg, unsigned char data);	* nc_i2c_write_reg : I2C write register * @reg: Register address to be written * @data: Character to be written * return : Returns 0 on success, negative value on configuration failure
int nc_i2c_wait_reply(unsigned char address, unsigned char reg, unsigned char reply, int timeout);	* nc_i2c_wait_reply : I2C wait for reply * @address: Slave address * @reg: Register address * @reply: Character to wait for reply * @timeout: Timeout setting * return : Returns 0 on success, negative value on timeout

5.2 I2C Upgrade Process*

Download Boot Files:
- The boot file download is divided into two stages: stage1 and stage2.
Download Image Files:
- Download the image file to the specified address.

5.3 I2C Upgrade Process Diagram*

It is recommended to right-click on the link and open it in a new window.

5.4 I2C Upgrade Method*

Firmware Package Information Structure Explanation

typedef struct {
  uint32_t  addr;       // Flash address where the firmware package is burned
  uint8_t  *buff;       // Address of the firmware package data buffer
  uint32_t  buff_len;   // Length of the firmware package data
  uint32_t  crc;        // CRC checksum
} fw_t;

typedef struct {
    int32_t   fw_num;   // Number of firmware packages (grus has one firmware package, Leo/Leo_mini have one or two firmware packages)
    fw_t      fw[0];    // Firmware package information structure
} fw_info_t;

Note

When porting streaming download interfaces, you don't need to worry about the firmware buffer address in the info structure. You need to pass the flash address, firmware data length, and CRC checksum to the function, and the firmware data address is passed through the last two parameters to input the streaming firmware data and length. This part is different from non-streaming mode.

5.4.1 i2c Non-Streaming Download Interface*

Non-streaming download: The entire boot file data packet and firmware package data exist on the host, and all data is passed to the download interface at once.

/**************************************
* Function: i2c Non-streaming download boot
* boot: Boot file buffer address
* len: Length of boot file data
* return: 0 for success, -1 for failure
**************************************/
int32_t i2c_sendboot(uint8_t *buff, uint32_t len)
/**************************************
* Function: i2c Non-streaming download boot
* info: Firmware package information structure
* return: 0 for success, -1 for failure
**************************************/
int32_t i2c_download(fw_info_t *info)

5.4.2 i2c Streaming Download Interface*

Streaming download: The boot file data and firmware package are not completely available on the host, but are sent chunk by chunk from other sources. At the beginning, the size of the entire firmware package and the flash address where the firmware is burned are needed.

/**************************************
* Function: i2c Streaming download boot
* boot: Boot file buffer address passed in each time
* len: Length of boot data buffer to be burned each time
* return: 0 for success, -1 for failure
**************************************/
int32_t i2c_sendboot_streaming(uint8_t *boot, int len)
/**************************************
* Function: i2c Streaming download boot
* info: Firmware package information structure
* data: Buffer address for burning firmware data each time
* len: Length of firmware data buffer to be burned each time
* return: 0 for success, -1 for failure
**************************************/
int32_t i2c_download_streaming(fw_info_t *info, uint8_t *data, uint32_t len)

5.5 i2c Upgrade Porting Steps*

Implement porting_i2c.c.
Call the i2c_sendboot or i2c_sendboot_streaming interface to download the boot file.
Call the i2c_download or i2c_download_streaming interface to download the firmware.

6. OTA USB Upgrade Instructions and Porting Steps*

6.1 Analysis of porting_usb.c*

API Interface	API Description
int nc_usb_init(void);	* nc_usb_init : USB initialization * return : Returns 0 on successful configuration, negative value on configuration failure
void nc_usb_done(void);	* nc_usb_done : USB resource release
int nc_usb_open(void);	* nc_usb_open : Open the USB device * return : Returns 0 on successful configuration, negative value on configuration failure
void nc_usb_close(void);	* nc_usb_close : Close the USB device
int nc_usb_rx(void *buf, int len);	* nc_usb_rx : USB receive data * @buf : Memory for receiving data * @len : Length of data to receive * return : Returns the actual length of received data
int nc_usb_tx(void *buf, int len);	* nc_usb_tx : USB send data * @buf : Memory containing the data to send * @len : Length of data to send * return : Returns the actual length of sent data
int nc_waituntildevicedisconnect(int timeout_s);	* nc_waituntildevicedisconnect : Timeout waiting for USB device disconnection * return : Returns 0 if the device disconnects within the timeout, negative value if the device remains connected within the timeout
int nc_waituntildeviceconnect(int timeout_s);	* nc_waituntildeviceconnect : Timeout waiting for USB device connection * return : Returns 0 if the device connects within the timeout, negative value if the device remains disconnected within the timeout

6.2 USB Upgrade Process*

Download Boot Files:
The boot file download is divided into two stages: stage1 and stage2.
Download Image Files:
Download the image file to the specified address.

6.3 USB Upgrade Process Diagram*

It is recommended to right-click on the link and open it in a new window.

6.4 USB Upgrade Method*

Firmware Package Information Structure Explanation

typedef struct {
uint32_t  addr;       // Flash address where the firmware package is burned
uint8_t  *buff;       // Address of the firmware package data buffer
uint32_t  buff_len;   // Length of the firmware package data
uint32_t  crc;        // CRC checksum
} fw_t;

typedef struct {
  int32_t   fw_num;   // Number of firmware packages (grus has one firmware package, Leo/Leo_mini have one or two firmware packages)
  fw_t      fw[0];    // Firmware package information structure
} fw_info_t;

Note

When porting streaming download interfaces, you don't need to worry about the firmware buffer address in the info structure. You need to pass the flash address, firmware data length, and CRC checksum to the function, and the firmware data address is passed through the last two parameters to input the streaming firmware data and length. This part is different from non-streaming mode.

6.4.1 USB Non-Streaming Download Interface*

Non-streaming download: The entire boot file data packet and firmware package data exist on the host, and all data is passed to the download interface at once.

/**************************************
* Function: usb Non-streaming download boot
* boot: Boot file buffer address
* len

: Length of boot file data
* return: 0 for success, -1 for failure
**************************************/
int32_t usb_sendboot(uint8_t *buff, uint32_t len)
/**************************************
* Function: usb Non-streaming download boot
* info: Firmware package information structure
* return: 0 for success, -1 for failure
**************************************/
int32_t usb_download(fw_info_t *info)

6.4.2 USB Streaming Download Interface (Not Supported)*

USB download currently does not support streaming download.

6.5 USB Upgrade Porting Steps*

Implement porting_usb.c.
Call the usb_sendboot interface to download the boot file.
Call the usb_download interface to download the firmware.

7. OTA Verification Test*

Note

The provided code in this document can be compiled and run on the Linux PC platform, so the verification is also based on the Linux PC platform.

7.1 Select Boot File*

Boot file explanation:
- A runnable file downloaded to the chip from the host via USB/UART/I2C. The chip runs this file and interacts with the host to complete the download and other tasks.

Bootfile list:

grus-i2c.boot:     Boot file for grus I2C download
grus-uart.boot:    Boot file for grus UART download
leo_mini-uart.boot: Boot file for leo mini UART download
leo_mini-usb.boot: Boot file for leo mini USB download
leo-uart.boot:     Boot file for leo UART download

When executing the executable file, input the chip model parameter. The program will automatically select the corresponding boot file.

Hint

If porting to a non-PC platform, you can convert the boot file to a C file and compile it into the program using the xxd command.

$ xxd -i grus.boot > grus_boot.h

7.2 Compile and Generate Executable File*

Execute make clean; make to generate ./a.out.
Then execute the executable file: sudo ./a.out [chip_model] [download_method]
```
chip_model: grus / leo / leo mini
download_method: uart / i2c / usb
```

Chip-supported download methods:

Leo      : Including 8008/8009/8010, supports USB/UART
Leo mini : Including 8008c/8008b, supports USB/UART
Grus     : Including 8002, supports UART/I2C

Example: sudo ./a.out grus i2c

7.3 Burn Test*

Execute the following command for the burn test: $ sudo ./a.out grus uart

UART PROTOCOL VERSION: V1.1.0
download_bootfile:309
please reboot the board
[ DBG]recv : f8
[ DBG]recv : 46
[ DBG]CRC SUCCESS
[ DBG]baud :  1500000
[ DBG]stage1 finished
[ DBG]stage2 finished
[ DBG]uart cmd : serialdown 0x0 102400 51200
[ DBG]uart cmd : serialdown 0x10000 102400 51200
Download finish

If the above prints appear, the burn is successful!

8. Notes*

UART Usage:

Warning

The demo assumes /dev/ttyUSB0 as the default UART port. If it doesn't match, please modify nc_uart_init to specify the correct serial port.

1. The default UART port is /dev/ttyUSB0. If it is different, please modify `nc_uart_init`.
2. Compile:
  make
3. Execute:
  ./a.out grus uart

I2C Usage:

1. Purchase the CH341TA USB-to-I2C device. Reference TB link: https://item.taobao.com/item.htm?spm=a1z10.5-c.w4002-1379463985.13.665333e6JZjkKZ&id=16318219421
2. Enter the porting/usb2i2c/Linux_driver directory and compile the driver:
    make
3. Install the driver:
    3.1 Uninstall the system's ch341 generic serial driver (not uninstalling may cause the USB serial device to be misidentified as a USB serial device):
        sudo rmmod ch341
    3.2 Install the current driver:
        sudo modprobe usbserial
        sudo insmod ch34x_pis.ko
4. Compile the program:
    make
5. Test whether the program works properly:
    sudo ./a.out grus i2c

USB Usage:

1. Compile:
  make
2. Execute:
  sudo ./a.out leo_mini usb

General Debugging Method:

Open DEBUG := -DDEBUG in the Makefile to enable debugging output.

OTA_SDK Usage Guide and Porting Guide*

1. Overview*

2. Obtaining the Code*

2.1 Downloading the Code*

3. OTA SDK Architecture Overview*

4. OTA UART Upgrade Instructions and Porting Steps*

4.1 Analysis of porting_uart.c*

4.2 UART Upgrade Process*

4.3 UART Upgrade Process Diagram*

4.4 UART Upgrade Method*

4.4.1 Non-Streaming UART Download Interface*

4.4.2 Streaming UART Download Interface*

4.5 UART Download Porting Steps*

5. I2C Upgrade Instructions and Porting Steps*

5.1 Analysis of porting_i2c.c*

5.2 I2C Upgrade Process*

5.3 I2C Upgrade Process Diagram*

5.4 I2C Upgrade Method*

5.4.1 i2c Non-Streaming Download Interface*

5.4.2 i2c Streaming Download Interface*

5.5 i2c Upgrade Porting Steps*

6. OTA USB Upgrade Instructions and Porting Steps*

6.1 Analysis of porting_usb.c*

6.2 USB Upgrade Process*

6.3 USB Upgrade Process Diagram*

6.4 USB Upgrade Method*

6.4.1 USB Non-Streaming Download Interface*

6.4.2 USB Streaming Download Interface (Not Supported)*

6.5 USB Upgrade Porting Steps*

7. OTA Verification Test*

7.1 Select Boot File*

7.2 Compile and Generate Executable File*

7.3 Burn Test*

8. Notes*

4.1 Analysis of `porting_uart.c`*
